The outstanding optical performance of the ergonomic Euromex BlueLine stereo microscopes enables long productive working sessions for students, for beginner or advanced science teaching classes.
The EduBlue microscopes are ideal for educational purposes and are available with dual or triple pairs of objectives for 5x up to 80x magnifications and are equipped with LED incident and transmitted illuminations. The two parallel optical trains allow the three-dimensional observation of small insects, plants, stones, and minerals.
EYEPIECE(S)
Pair of secured WF10x/20 mm eyepieces supplied with eyecups
HEAD
• Binocular head with 45° inclined tube
• Diopter adjustment of ± 5 on one side
• Interpupillary distance adjustable between 55 and 75 mm
DUAL MAGNIFICATION OBJECTIVES
• Revolving nosepiece with dual 1x/2x/3x , which can provide standard magnifications of 10x, 20x and 30x.
• Working distance 60 mm
• Field of view of 20/6.7 mm or 10/5 mm
• Magnifications can be altered using optional eyepieces
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
TRIPLE MAGNIFICATION OBJECTIVES
• Revolving nosepiece with triple 1x/2x/3x and 1x/2x/4x, which can provide standard magnifications of 10x, 20x and 30x or 10x, 20x and 40x
• Working distance 60 mm
• Field of views of 20/10/6.7 mm or 20/10/5mm
• Magnifications can be altered using optional eyepieces

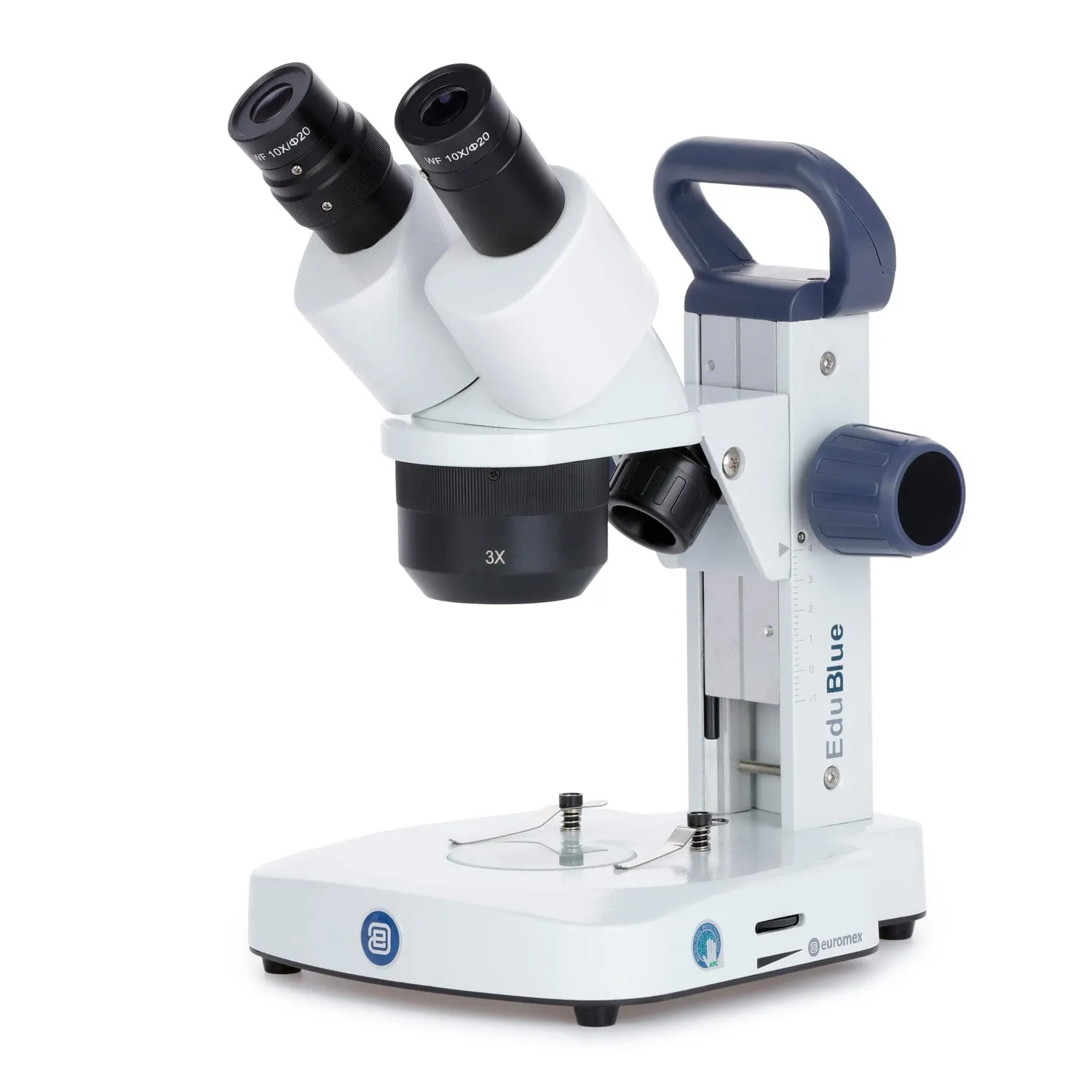

(Photo: Triple magnification)
STAND
• The rack & pinion stands of the EduBlue are equipped with ergonomic designed flat bases, complete with 2 object clamps and Ø 60 mm transparent and black/white stage plate
• The coarse adjustment is equipped with tension control
• The stands are alloy metal cast with hardened coating
• The rack & pinion stands of the EduBlue are equipped with graduations and focus point indicators for quick focusing

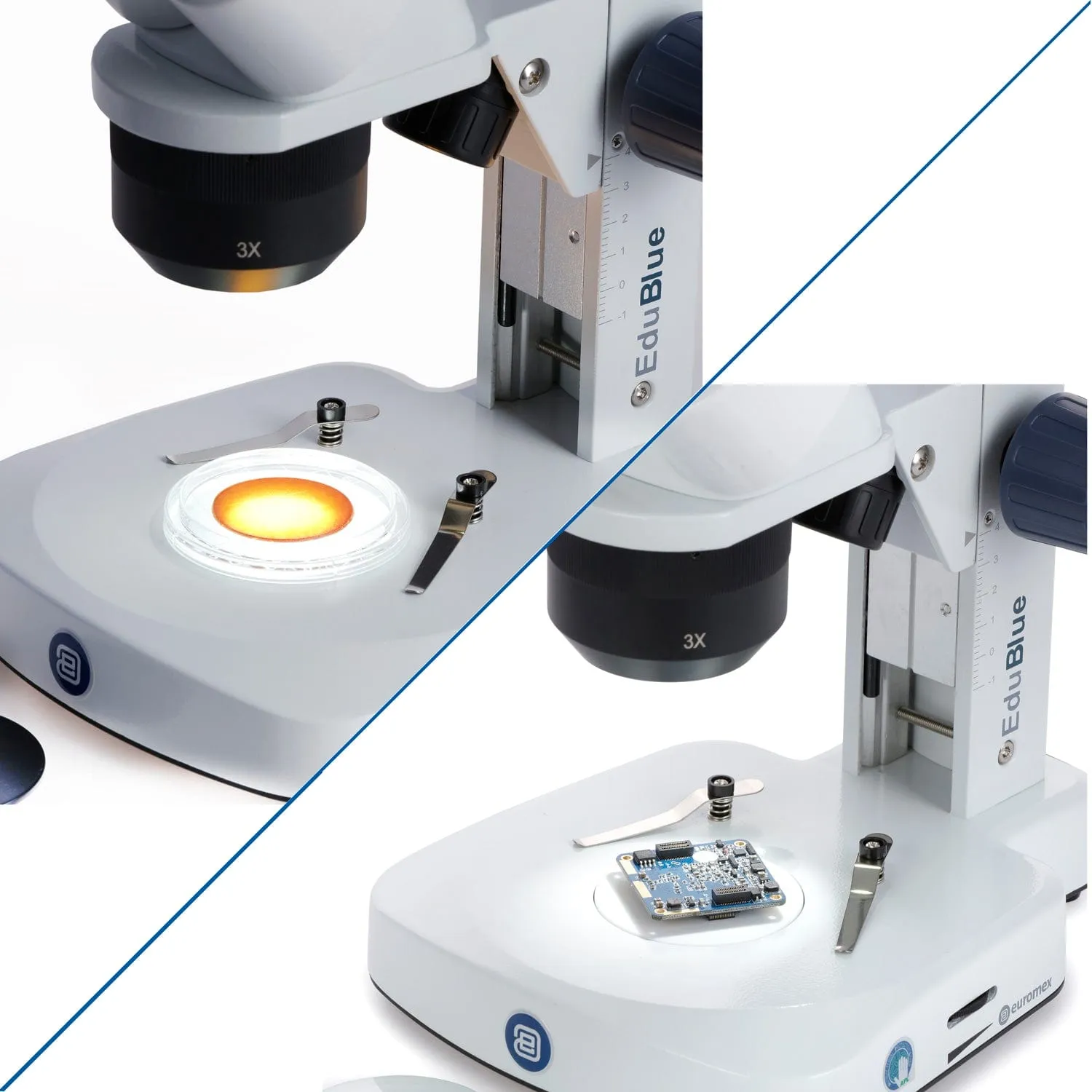

ILLUMINATION

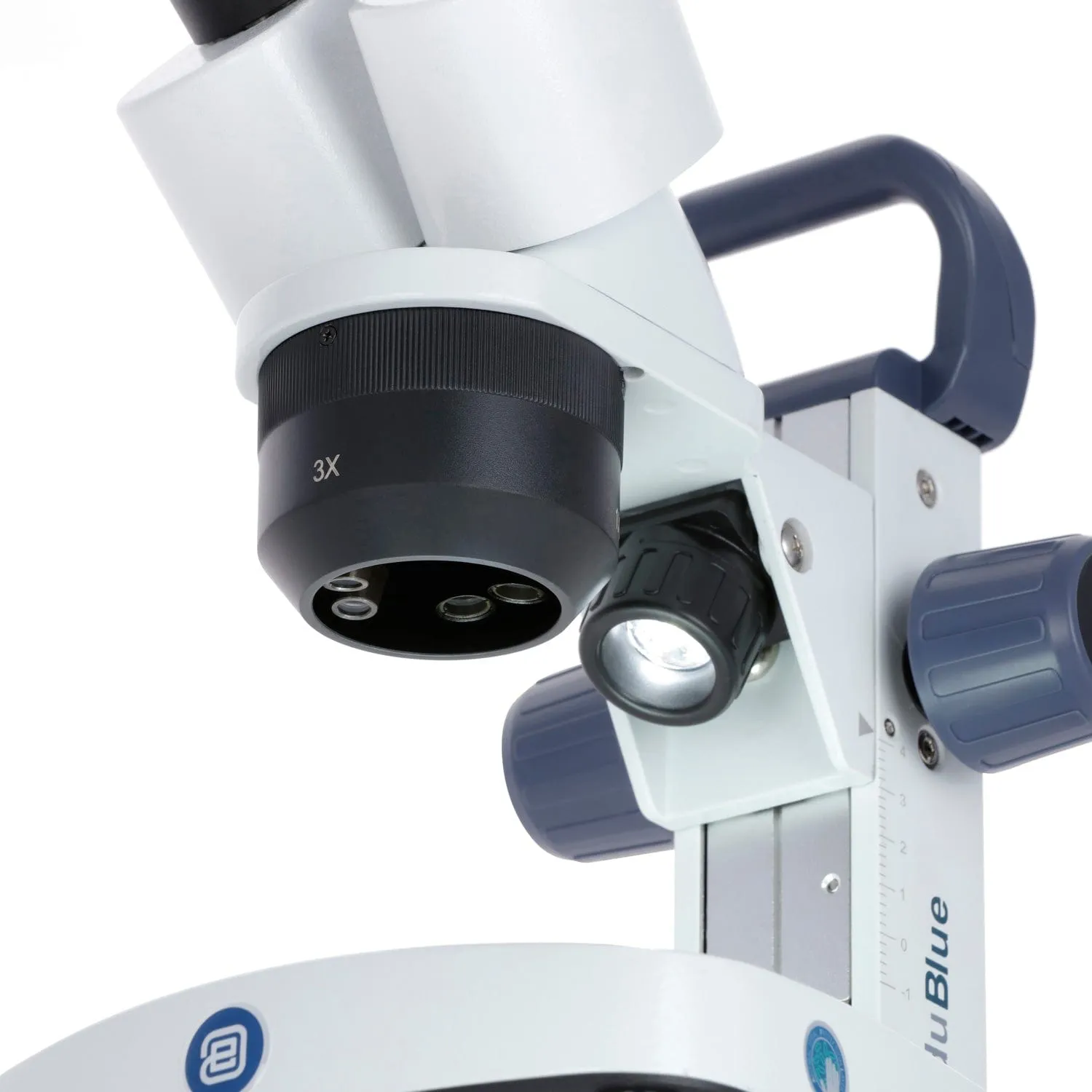

• The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately
• 60 mm working distance

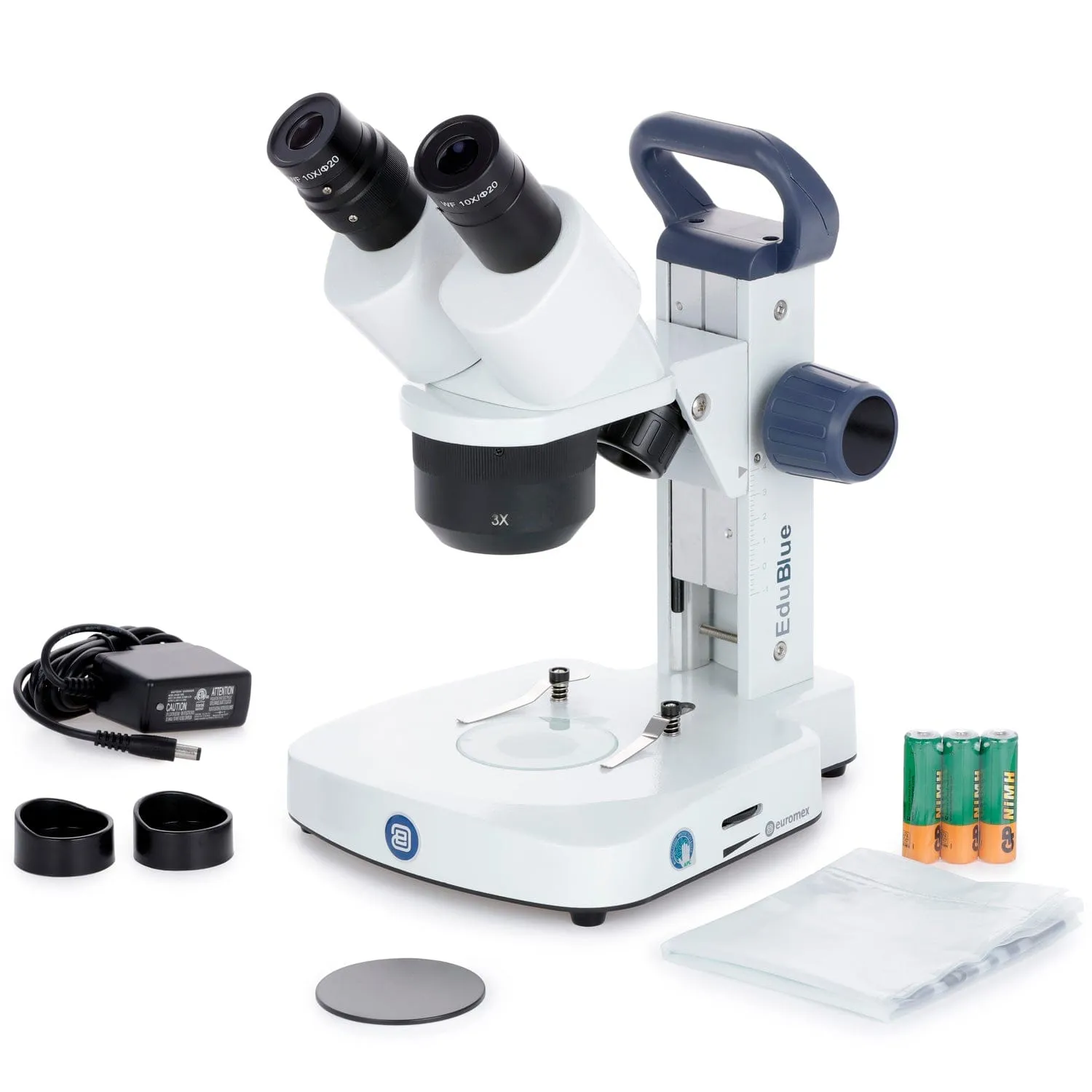

PACKAGE CONTENT
• Supplied with an external 100-240 V mains adapter/charger and three rechargeable batteries for corded and cordless use, dust cover, Ø 60 mm transparent and black/white stage plates, eyecups, and user manual
• All packed in a polystyrene box
